Tripod Turnstiles

BAR One Unipod

Add to wish list

Interested? Contact us!

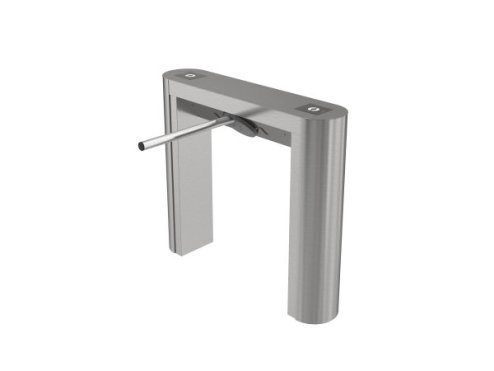

BAR One Unipod

Tripod turnstile with one arm.

BAR One Unipod is a tripod turnstile with one arm. In case of emergency and/or power outages the single arm folds down.



  • Auto-centering mechanism ensures the arm always rotates fully
  • Go-call function pre-rotates the arm for user comfort
  • Stainless steel barrier arms — long-lasting and elegant-looking at the same time
  • Integrated disc spring brake
  • Go Call – visual entry invitation feature
  • Unobstructed passage including automatic reset
  • Magnetic Direct Drive
  • Indoor/Outdoor, −25°C to +60°C / −13F° to 140°F
  • Climb over / crawl under, Permanently blocked mode, Emergency mode

Optional Accessories

  • RFID reader bracket (top/flush mounted)
  • Access Light / Lane Light / Passage Light
  • WAV player
  • USB convertor / Ethernet convertor
  • EasyTouch / TouchPanel / T-MON sw
  • SuperCap (emergency power back-up)
  • Alternative surface finishes

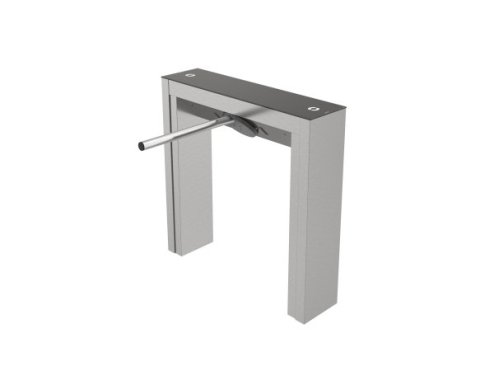

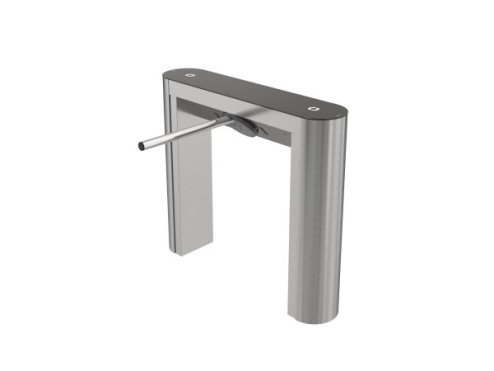

  • Optional black glass top lid
  • Ramp LT
  • Arm protector

Dimensions

  • Cabinet height 990 mm / 39.0"
  • Cabinet length (BAR One-G) 1 130 mm / 44.5"

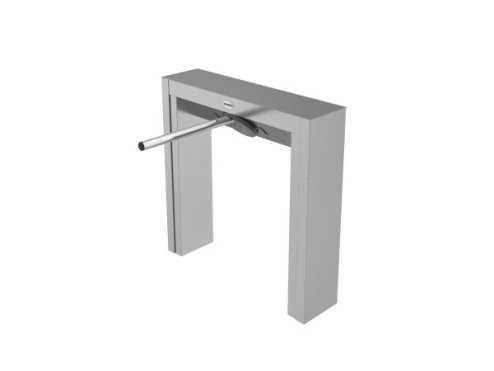

  • Cabinet length (BAR One-R) 990 mm / 39.0"
  • Cabinet width 250 mm / 9.8"
  • Passage width max 570 mm / 22.4"
  • Cabinet - Brushed stainless steel
  • Top Lid - Brushed stainless steel
  • Barrier - Single arm / Brushed stainless steel
